Drive Management System – Технические данные

DRIVE MANAGEMENT SYSTEM

• supply voltage: 20 – 58V
• switch-off voltage accumulator: <= 38V
• current limitation: 260A
• max. admissible motor temperature: 120 °C
• max. admissible accumulator temperature: 65 °C
• max. admissible temperature of power output stage: 95 °C
• controller release time limit: 40 sec.
• ambient temperature range: -20 up to +45 °C

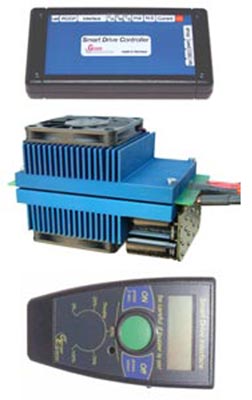

Drive control SDC

• weight: 130g
• dimensions: 12,5 x 6,7 x 2,5 cm

Frequency converter DST

• weight: 850g
• dimensions: 12 x 6,9 x 6 cm (without cooling fan)

User interface SDI

• weight: 110g
• dimensions; 10 x 4,6 x 3 cm
