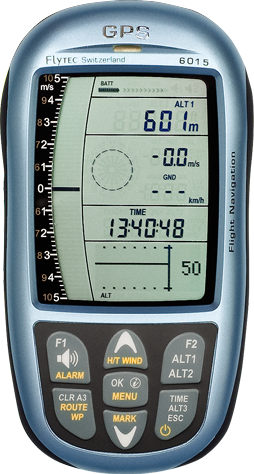

Flytec 6015 GPS Ballon - Technische Daten
Variometer
Analog display
± 10 m/s – scale: 0,2 m/s over the entire scale range, ± 20 ft/min x 100
scale: 0,4 ft/min x 100
Digital display
± 300 m/s or ft/min x 100 scale: 0,1 m/s or 0,1 ft/min x 100 integrator adjustable from 1 up to 30 seconds
Acoustics
4 audio volume settings, climb acoustic is tone- and interval modulated, maximum interval frequency adjustable from 3 m/s up to 11 m/s or Smart-interval, adjustable response threshold ASI (Acoustic Scale Indicator) – may be switched-on/off
discreet sink acoustic tone and loud sink alarm, separately adjustable.
Altimeter (3 different altimeter measuring functions)
maximum altitude:
12’300 m
scale:
1 m or 1 ft
QNH:
indication of air pressure in hPa or in inHg
ALT 1:
absolute altimeter
ALT 2:
absolute- or relative altimeter
ALT 3:
differential altimeter
Thermometer
measuring range:
-20 °C up to +60 °C - display: °C or °F
scale:
0,1 °C or 0,1 °F
calibration range:
+/- 50%
GPS
update rate of 1 sec., independent from preset recording rate.
Wind speedometer (sensor optional)
measuring range:
0 km/h up to 120 km/h – display: km/h, kts or mph
scale:
1 km/h, 1 kt or 1 mph – can be calibrated ± 50%
Barograph
Barograph memory:
recording of the 50 recent trips with date, start time, journey time, max. altitude and min./max. Vario
Memory capacity:
120 hours recording at 30 sec. recording interval of position, barometric altitude and GPS-altitude, satellite constellation and speed over ground.
Recording interval:
1 up to 30 sec.
PC-connection:
USB-1.1 cable, analysis with FlyChart
Software
Flychart
provides additional, individual settings, such as audio-pitch, response characteristics, sensitivity etc. Journey statistics, journey data base, barograph print-outs, firmware update with the Flytec-Flasher tool.
Analog variometer
-
measuring range:
±10 m/s -
scale:
0,2 m/s over the entire scale range, ± 20 ft/min x 100
scale: 0,4 ft/min x 100
Digital variometer
-
measuring range:
±300 m/s or ft/min x 100 -
scale:
0.1 m/s or 0.1 ft/min x 100 -
Integrator:
adjustable from 1 up to 30 seconds
Vario acoustics sound opening
-
volume:
4 audio volume settings -
climb acoustic:
tone- and interval modulated, maximum interval frequency adjustable from 3 m/s up to 11 m/s
adjustable response threshold -
ASI (acoustic Skala Indikator):
may be switched-on/off -
sink acoustic:
discreet sink acoustic tone and loud sink alarm, separately adjustable
Temperature display
-
measuring range:
-20°C up to 76°C -
display:
°C or °F -
scale:
0,1°C or 0,1°F, can be calibrated
Altimeter (3 different altimeter measuring functions)
-
maximum altitude:
12'300 m - scale: 1 m or 1 ft -
QNH:
indication of air pressure in hPa or in inHg -
ALT 1:
absolute altimeter -
ALT 2:
absolute- or relative altimeter -
ALT 3:
differential altimeter
Clock functions
-
real time clock:
12/24 h-mode with date and automatic calendar -
stop watch:
up to 99 h 59 min. 59 sec. -
journey time:
automatic trip time keeping
Indicator battery charge state
- continuous monitoring of battery voltage- and indicator
multifunction display
- compass rose, wind direction, Bearing, direction to last thermal
digital speedometer
-
measuring range:
0 km/h up to 120 km/h -
display:
km/h, kts or mph -
scale:
1 km/h, 1 kt or 1 mph - an be calibrated ± 50%
multifunction display, now altitude sequence
- More pages: Menu,functional pages: glide ratio, wind indicator, Waypoints
lateral USB port
lateral port for speed sensor
Number of available satellites
Audio volume
